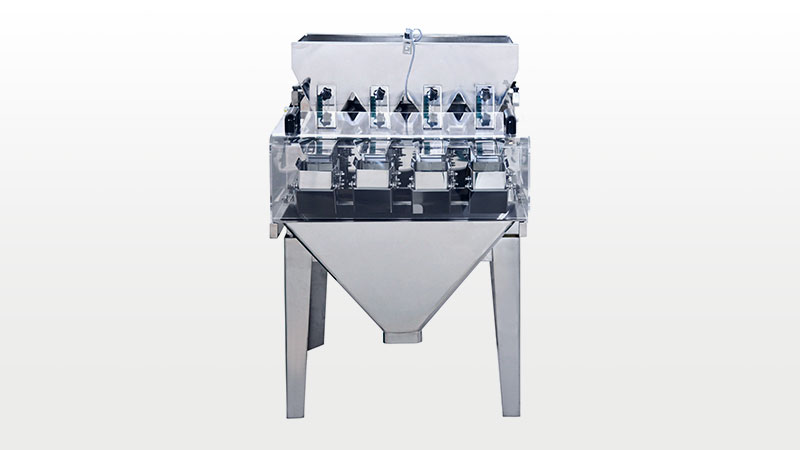

COMBIMAT LINEAR

With their favourable price-quality ratio, Combimat linear weighers are the ideal solution for start-up packagers or those with a limited budget. With a clear colour touch screen with storage for 90 programmes and easily removable contact parts, they are extremely quick to clean and convert to a new product. These are often used stand-alone for semi-automatic filling of preformed packaging, but also have synchronisation signals for connection to a packaging machine.

COMBIMAT LINEAR WEIGHER APPLICATIONS

The range of applications for linear Combimat weighers is very diverse in both the food and non-food industries:

  • Tea Tea
  • Coffee Coffee
  • Rice Rice
  • Seeds Seeds
  • Fertiliser pellets Fertiliser pellets
  • Chocolate sprinkles Chocolate sprinkles
  • Cereals Cereals
  • Pet food Pet food
  • Muesli Muesli
  • Popcorn Popcorn
  • Croutons Croutons
  • Nuts Nuts

Want to know more about Combimat LINEAR?

The Combimat weighing machines from Laurijsen WeegAutomaten have a large number of advantages:

  • 7″ colour touch screen display in Dutch (also available in German, English and French)
  • Easy operation for setting speed, weighing weight, opening hours, etc.
  • Storage for 90 programmes
  • Easy to dismantle and clean without tools
  • Synchronisation with all packaging machines
  • Complete stainless steel machine
  • Opening of the bins by means of stepper motors
  • Sensor in the bunker for starting and stopping the feed
  • Affordable weigher for the novice packager
Make an appointment
Download brochure

HOW THE COMBIMAT LINEAR WEIGHER WORKS

In the linear filling units, the product is transported from the central hopper to the weighing tray via the vibrating chute. This cycle is divided into three phases with different vibration strengths in order to achieve an optimal product flow. At the end of the chute, a pneumatic valve reduces the product flow towards the end of the weighing cycle in order to achieve optimum accuracy.

DESIGN AND OPTIONS

All linear weighers are made of stainless steel and have a modular design. All contact parts can be removed without tools, and the compact design ensures that they can be easily installed in the production area. Of course, the synchronisation signals are present to work in combination with an automatic packaging machine, but it is also possible to have the weigher discharge semi-automatically by means of a foot pedal. In addition, a sensor monitors the level in the bunker and releases a signal when product needs to be added.

CONTROL

Operation is entirely via a clear 7″ colour touch screen with storage for 90 programmes. The comprehensive software includes weighing filters, password protection and is available in several languages (including Dutch, English, German, French and Spanish).
